The Ottilo System
$249
A home microneedling system with a solenoid pen and a desktop controller. The pen runs only while it is pressed to the skin, depth is set on the pen from 0.25 to 2.5 mm, and the colour screen shows speed, depth and a session timer.
Includes 5 cartridges.
- Free US shipping
- Ships from US stock
- No charges on delivery
- 60-day returns
- 1-year warranty
What’s in the box
- Ottilo pen with detachable cable
- Ottilo controller
- US power supply
- 5 sealed, single-use needle cartridges
- Storage pouch for the pen
- Quick-start card
How it works

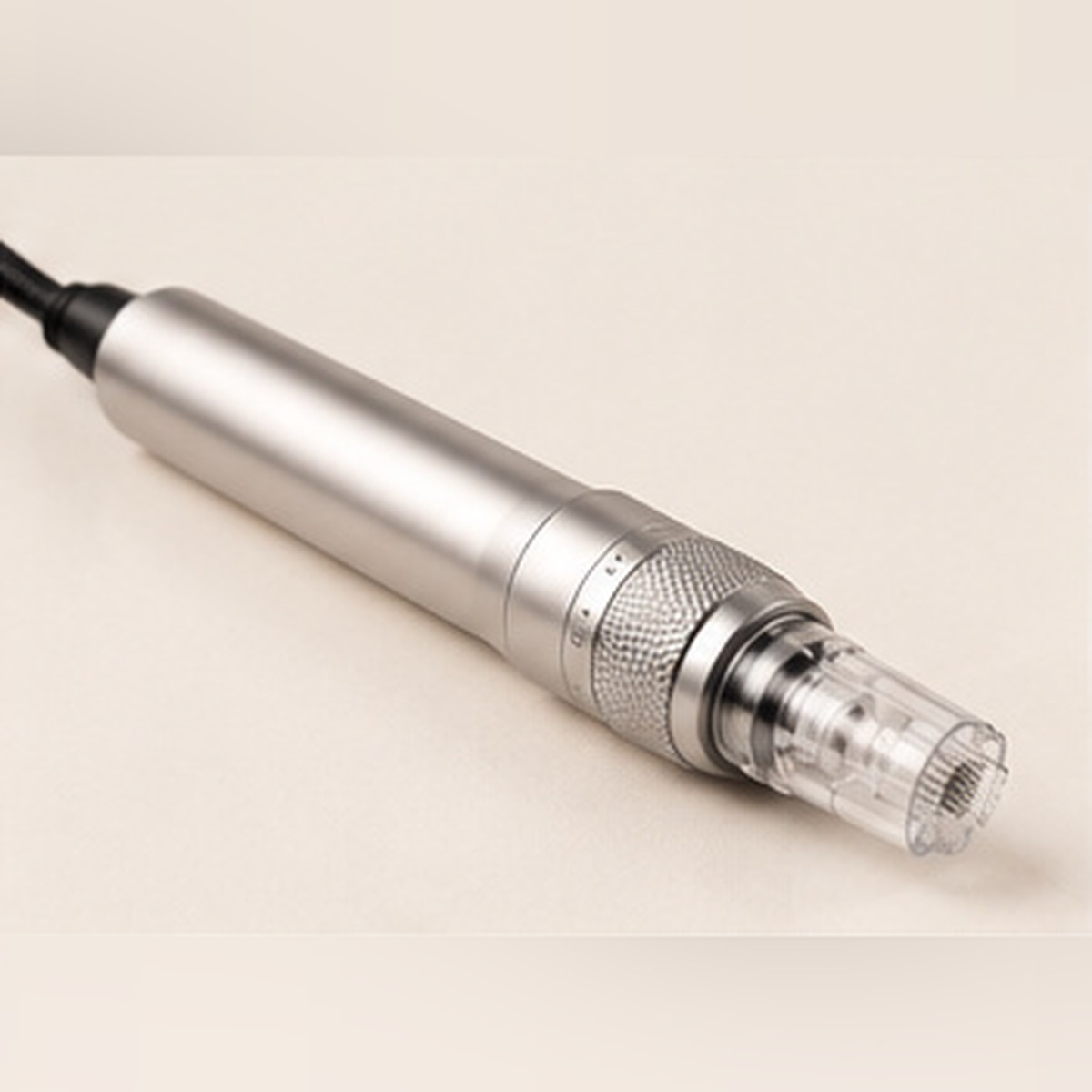

The pen holds a small coil and a magnetic plunger. Each pulse from the controller drives the plunger forward and a spring returns it, so the needles move in a straight line at an even rhythm. A ring near the tip sets how far the needles extend, from 0.25 to 2.5 mm.

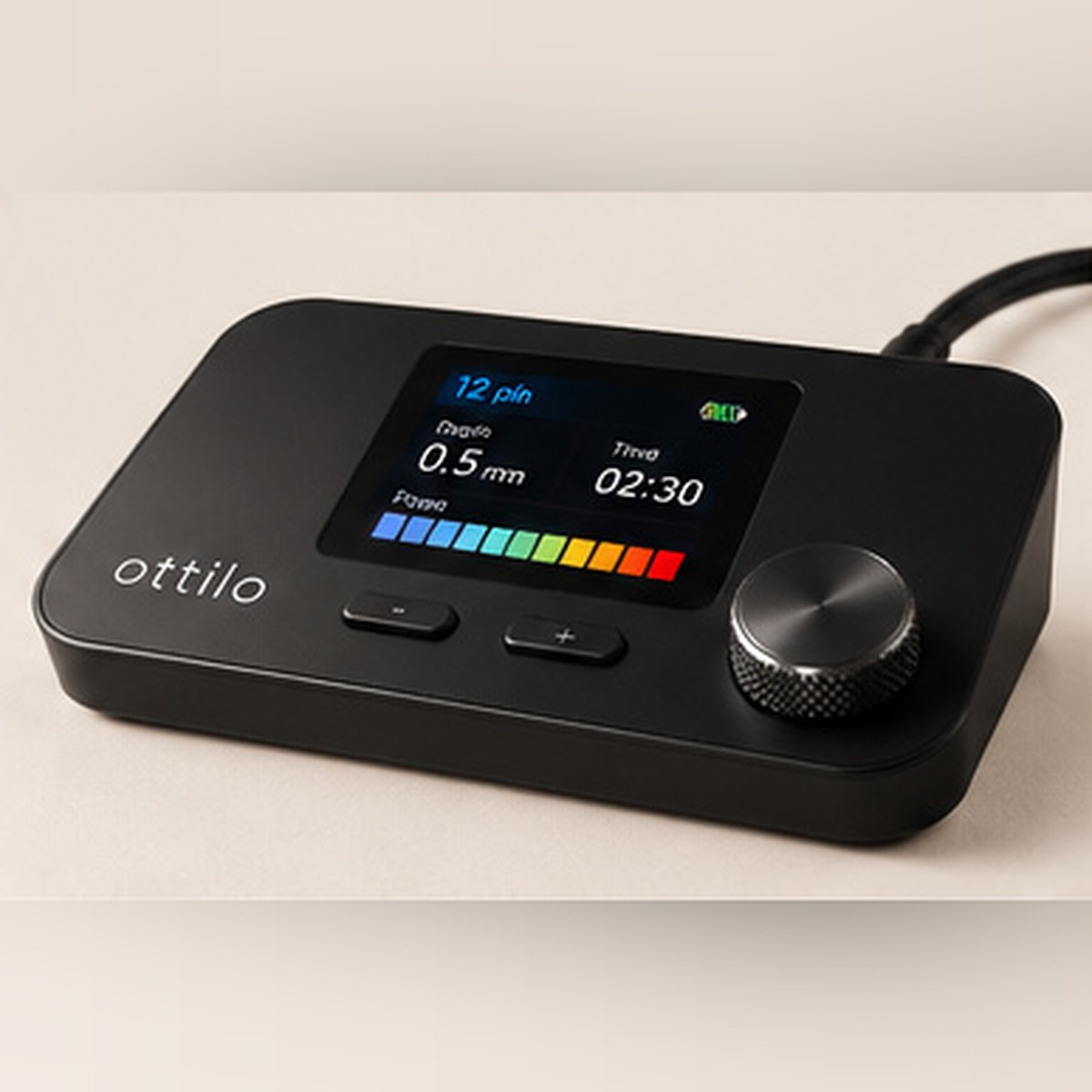

A pressure switch inside the pen keeps it still until the tip is pressed to the skin. Lift the pen and it stops. The controller holds the electronics, which keeps the pen slim and light, and gives room for a proper dial and a colour screen.
Target specification
| Drive | Solenoid linear actuator: coil, plunger and return spring |
|---|---|
| Stroke | 2.5 mm, fixed |
| Needle depth | 0.25 to 2.5 mm, set by a ring on the pen |
| Activation | Pressure switch in the pen: runs only while pressed to the skin |
| Speed | 8 levels, set with the controller dial |
| Screen | Colour display showing speed, depth, cartridge type and timer |
| Timer | Off, 5, 10 or 15 minutes |
| Noise | 55 dB or less |
| Session length | Built for 30 minutes of continuous use without overheating |
| Connection | Detachable cable between pen and controller |
| Power | Plug-in US power supply |
Ottilo is in development. These figures are design targets for the production unit and may change before launch.
Cartridges
Each cartridge is sealed and used once. Replacement cartridges come in packs of 10.
Care
Turn the dial back to zero, remove the used cartridge and wipe the pen body down. The pen and controller are not waterproof.
